Automatic Double Side Bottle Labeling Machine SS304 Material Multi Dimensional Adjustable

Automatic Double Side Bottle Labeling Machine SS304 Material Multi Dimensional Adjustable

Double Side Bottle Labeling Machine

Bottle Labeling Machine SS304

Adjustable double side labeling machine

Place of Origin:

China

Brand Name:

Waterpro /OEM

Certification:

CE

Model Number:

WT-180SA

Contact Us
Request A Quote
Product Details
Material:
SS304
Warranty Period:
One Year
Industrial Use:
Food, Medicine, Daily Chemical, Chemical Industry And Other Industries
Applicable Paper Roll Internal Diameter:
76mm
Labeling Precision:
±1mm(not Containing The Error Of Products And Labels)
Applicable Product Size:
25-120mm
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Naked or export wooden case
Delivery Time
35 work days
Payment Terms
L/C, D/A, T/T, Western Union
Supply Ability
50 PCS per month
Product Description

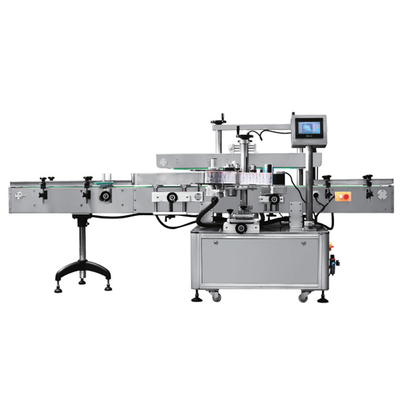

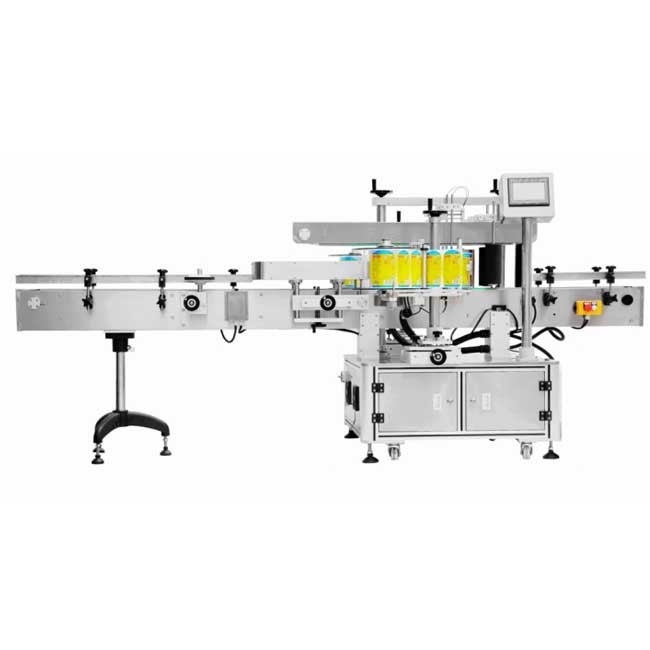

Automatic Double Side Labeling Machine Bottle Labeling Machine SS304

This machine is suitable for flat bottles, square bottles, round bottles and other bottle-shaped common use in various industries such as food, medicine, daily chemical, chemical and so on. For example: cereal, chili sauce, honey, liquor, health wine, detergent, hand sanitizer, body wash, shampoo and so on. Full function, can choose one side label, double side label or Circle label.

Special design of mechanism with the plastic, ensure accurate positioning of objects to be
labeled, to improve the accuracy of labeling.
Pressure with double pole, double screw chain drive, easy to adjust.
The machine adopts synchronous tracking detection, can automatically detect the labeled
products’ position to realize accurate labeling.
Multiple labeling parameter memory can quickly change the production.
The machine can be designed to fit the bottle is standard, back, neck labeling function.

  1. Multi-dimensional adjustment of the labeling head and specially designed shaping belt mechanism to ensure the precise positioning of flat bottles, square bottles and products with irregular surfaces, and improve the labeling accuracy.
  2. Elastic pressure belt design improves the stability of bottle conveying and ensures higher labeling accuracy.
  3. The whole machine adopts synchronizer tracking and detection, which automatically detects the position of the product to be pasted and realizes precise labeling.
  4. Multiple groups of labeling parameters can be stored, which can quickly change the production of products.
  5. Round bottle labeling can achieve circular labeling, front and rear symmetrical labeling, and a point device can be selected to achieve fixed-point labeling on the circumference.
  6. Label teaching function, complete label setting of different specifications with one key, intelligent and efficient
Labeling speed 0-25m/min.
Labeling precision ±1mm(not containing the error of products and labels)
Applicable paper roll internal diameter 76mm.
Max paper roll external diameter 300mm
Max label height 200mm.
Applicable product size 25-120mm.
Applicable voltage AC220V, 50/60Hz.
Mechanical size 3000x1380x1600mm
